Airport lighting plays a pivotal role in ensuring the safety, efficiency, and smooth operation of airport facilities. From guiding pilots during takeoff and landing to providing passengers with a secure and pleasant environment, effective lighting systems are indispensable. This guide delves into the critical aspects of airport lighting, covering the selection process, types of lights used, and their applications across various airport areas.
Choosing the optimal lighting for an airport involves several factors, including safety requirements, operational efficiency, and compliance with regulatory standards. Here’s a step-by-step approach to selecting the best lighting solutions:
Airports are subject to stringent regulations set by aviation authorities such as the Federal Aviation Administration (FAA) and the International Civil Aviation Organization (ICAO). These regulations outline specific lighting requirements for runways, taxiways, and aprons to ensure safe aircraft operations. Adhering to these guidelines is the first step in selecting suitable lighting systems.
Environmental factors like weather, visibility, and geographical location significantly influence lighting choices. Airports in regions with frequent fog or heavy rain may require lighting systems with higher intensity and advanced technologies, such as LED lights, to enhance visibility. Similarly, airports in areas with extreme temperatures need lighting fixtures capable of withstanding harsh conditions without compromising performance.

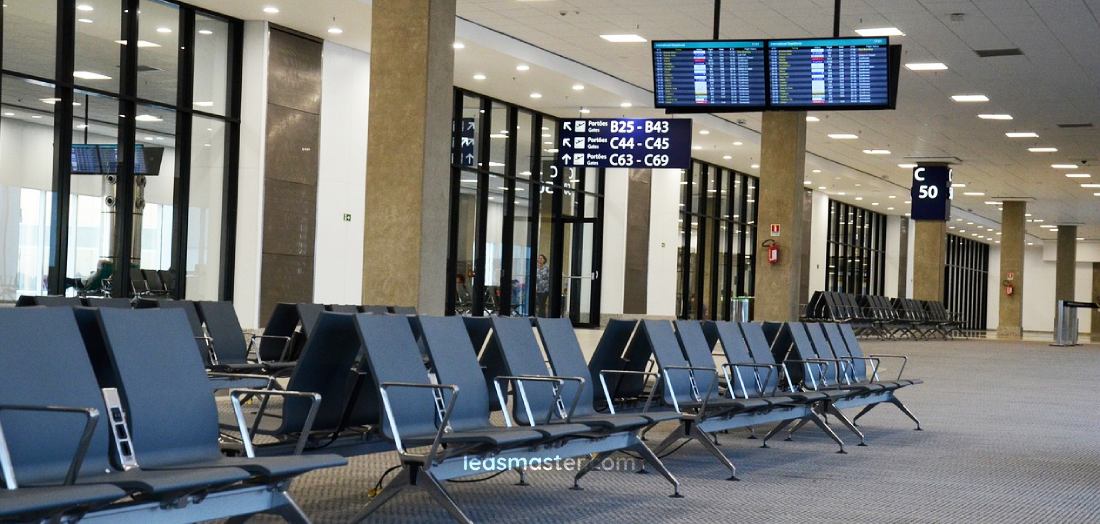

Energy efficiency is a crucial consideration in airport lighting. Modern airports aim to reduce their carbon footprint and operational costs by opting for energy-efficient lighting solutions. LED lights are a popular choice due to their long lifespan, lower energy consumption, and reduced maintenance needs. Implementing smart lighting controls, such as dimming and motion sensors, can further enhance energy savings.
Airport lighting systems must be durable to withstand the demanding airport environment, which includes exposure to weather elements, vibrations from aircraft, and potential impacts. Selecting lights with robust construction and minimal maintenance requirements is essential for ensuring reliable operation and reducing downtime. Regular maintenance schedules and easy access to spare parts also contribute to the longevity of the lighting systems.
Visual comfort for pilots and ground personnel is vital in airport lighting design. Ensuring that lighting systems provide adequate illumination without causing glare or visual fatigue is essential for maintaining operational safety. Proper positioning and angling of lights, along with using diffusers or anti-glare fixtures, help achieve a balance between illumination and visual comfort.
Airport lighting encompasses various types, each serving specific functions across different airport areas. Understanding these types and their applications is crucial for effective airport lighting design.
Runway lighting is critical for guiding pilots during takeoff, landing, and taxiing. Key components include:
Runway Edge Lights
These lights outline the edges of the runway and are essential for defining the runway’s width during low-visibility conditions. They are typically white for most of the runway length and switch to yellow in the caution zone near the end.
Runway Centerline Lights
Embedded along the runway centerline, these lights provide precise guidance for aircraft alignment. They are white until the last 3,000 feet of the runway, where they alternate between red and white for the next 2,000 feet, and are solid red for the final 1,000 feet.
Runway End Lights
Positioned at the runway’s end, these unidirectional lights are red and indicate the runway’s termination point, warning pilots of the runway’s end.
Approach Lighting System (ALS)
Located at the runway approach, ALS provides visual cues for pilots during landing, especially in poor visibility. It typically includes a series of light bars, strobes, and sequenced flashing lights.
Taxiway lighting ensures safe navigation for aircraft moving between the runway and terminal areas. Key components include:
Taxiway Edge Lights
These blue lights outline the edges of taxiways, helping pilots navigate the taxiways, especially at night or in low-visibility conditions.
Taxiway Centerline Lights
Green lights embedded along the taxiway centerline provide guidance for aircraft, ensuring they remain within the taxiway boundaries.
Stop Bar Lights
Positioned at intersections where taxiways meet runways, these red lights indicate where aircraft must stop until clearance is received to proceed.
Apron and ramp lighting is crucial for illuminating aircraft parking areas and ground operations. Key components include:
Apron Floodlights
High-intensity lights mounted on poles or structures provide broad illumination for aircraft parking stands and ground handling operations. They enhance visibility for pilots and ground staff during aircraft parking, refueling, and baggage handling.
Stand Guidance Lights
These lights assist pilots in precisely aligning aircraft with passenger boarding bridges or parking positions. They often include visual docking guidance systems that use a combination of lights and digital displays.
Lighting in terminal and landside areas enhances passenger experience and ensures security. Key components include:
Gate Area Lighting
Proper illumination in gate areas is essential for boarding and deplaning activities. It includes lights on passenger boarding bridges, gate signage, and displays to provide clear visibility for passengers and staff.
Baggage Handling Area Lighting
Adequate lighting in baggage claim and sorting areas is crucial for efficient operation and safety. It ensures clear visibility for staff handling luggage and for passengers retrieving their bags.
Security Checkpoint Lighting
Security checkpoints require focused and well-distributed lighting to facilitate thorough inspection and maintain security standards. It helps security personnel identify and screen passengers and their belongings effectively.
Passenger Waiting Area Lighting
In waiting areas, lighting should provide a comfortable and inviting atmosphere for passengers. It includes general illumination, task lighting for reading, and accent lighting to create a pleasant environment.
Lighting in maintenance and operational areas ensures safety and efficiency for ground staff and equipment. Key components include:
Hangar Lighting
Aircraft hangars require high-intensity lighting for maintenance and inspection activities. It includes overhead floodlights and task lighting for detailed work areas, ensuring clear visibility for technicians.
Service Road Lighting
Adequate illumination on service roads and pathways enhances safety for ground vehicles and personnel moving within the airport premises. It helps prevent accidents and ensures smooth operations.
Emergency and Backup Lighting
Emergency exits and critical pathways must have reliable lighting systems that activate during power outages. Backup lighting ensures that essential operations continue uninterrupted, providing safety and security during emergencies.
Navigation and safety lighting are crucial for preventing collisions and ensuring safe operations. Key components include:
Obstacle Lighting
Tall structures such as control towers, antennas, and buildings are marked with obstruction lights to prevent aircraft collisions. These lights are usually red or white and operate continuously or flash to draw attention.
Emergency Exit Lighting
Clearly illuminated exit signs and pathways ensure that passengers and staff can evacuate safely during emergencies. They are an essential component of airport safety measures.
Runways are perhaps the most critical areas of an airport when it comes to lighting. They demand precise and adequate illumination to facilitate safe takeoff, landing, and taxiing operations. Runway edge lights, which outline the edges of the runway, typically require between 10 and 20 lux. This level of illumination provides enough visibility to define the runway’s width without causing glare or visual confusion for pilots.
Runway centerline lights are positioned along the runway’s central axis and require a slightly higher illumination level, ranging from 15 to 30 lux. These lights offer critical guidance, especially in poor visibility conditions, helping pilots maintain alignment during takeoff and landing. The runway end lights, which mark the end of the runway, should be illuminated at 10 to 15 lux to clearly indicate the termination point of the runway.
Taxiways, which connect runways with aprons and terminals, also require meticulous lighting to ensure safe and efficient navigation for aircraft. Taxiway edge lights, placed along the perimeters of the taxiways, need an illumination level of 10 to 15 lux. This level provides sufficient visibility for pilots to distinguish the taxiway boundaries, particularly at night or during adverse weather conditions.
The taxiway centerline lights, embedded along the centerline, require a higher lux level, typically between 15 and 25 lux. These lights guide aircraft along the taxiway’s center, reducing the risk of veering off course. In areas where taxiways intersect with runways, stop bar lights are installed, which necessitate an illumination intensity of 30 to 50 lux. These lights signal where aircraft must halt until they receive clearance to proceed, thus enhancing safety at critical junctions.
Aprons and ramps are busy areas where aircraft are parked, loaded, unloaded, refueled, and serviced. These areas require high-intensity lighting to ensure safe and efficient ground operations. Apron floodlights, mounted on poles or buildings, typically need an illumination level of 50 to 100 lux. This high level of illumination provides broad coverage, enhancing visibility for pilots and ground staff during various activities such as aircraft parking and maintenance.
Stand guidance lights, which assist pilots in aligning aircraft with parking positions or passenger boarding bridges, should be illuminated at around 25 to 50 lux. These lights help pilots dock aircraft accurately, minimizing the risk of accidents and ensuring smooth boarding and deplaning processes.
Gate areas are crucial for passenger boarding and deplaning activities. Proper illumination is essential to facilitate these processes and enhance passenger experience. Lighting in gate areas, including passenger boarding bridges and gate signage, generally requires an illumination level of 100 to 200 lux. This ensures clear visibility for passengers and staff, enabling smooth operations and reducing the likelihood of accidents or delays.
Efficient baggage handling is vital for airport operations and passenger satisfaction. Baggage claim and sorting areas should be well-lit to ensure safety and operational efficiency. Illumination levels in these areas typically range from 150 to 300 lux, providing sufficient visibility for staff to handle luggage safely and for passengers to easily locate and retrieve their bags.
Security checkpoints are critical zones where thorough inspection and screening are conducted to ensure passenger and aircraft safety. Adequate lighting is necessary to support these activities, with recommended illumination levels of 200 to 500 lux. This range provides enough light for security personnel to effectively screen passengers and their belongings while maintaining a high standard of security.
Passenger waiting areas, including seating zones and lounges, should offer a comfortable and inviting atmosphere. Lighting in these areas generally requires 200 to 300 lux, providing enough illumination for activities such as reading, working, or relaxing without causing discomfort or glare.

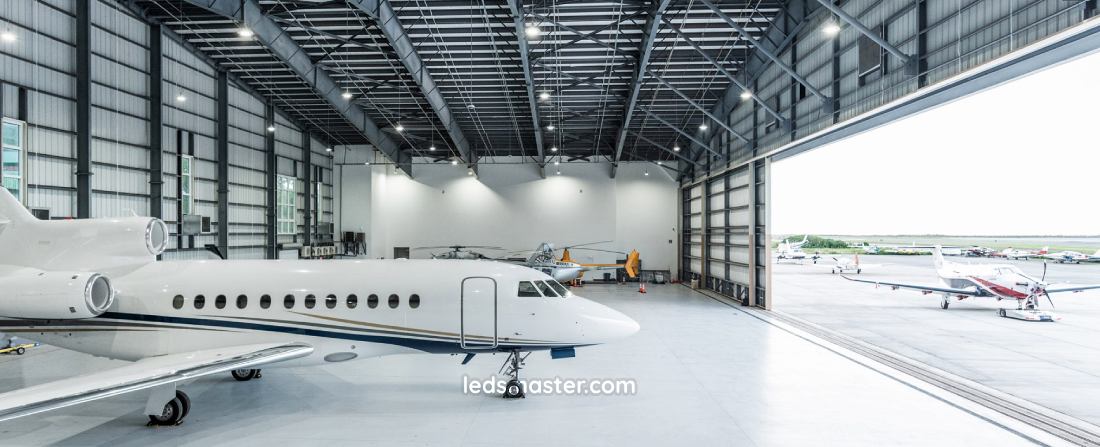

Aircraft hangars are environments where detailed maintenance and inspection activities are performed. High-intensity lighting is essential in these areas to ensure clear visibility for technicians and engineers. Hangar lighting typically demands an illumination level of 500 to 1000 lux, depending on the specific tasks being carried out. This range ensures that every detail is visible, facilitating thorough inspections and precise maintenance work.
Service roads and pathways within airport premises require adequate illumination to ensure the safety of ground vehicles and personnel. Lighting for service roads generally ranges from 30 to 50 lux, providing sufficient visibility for safe navigation and operations during night-time or low-light conditions.
Obstacle lighting is crucial for marking tall structures and potential hazards to prevent aircraft collisions. These lights are usually mounted on control towers, antennas, and other tall structures, and they typically require 100 to 200 lux to ensure they are clearly visible from a distance.
Emergency exits and critical pathways within the airport need reliable lighting systems that activate during power outages or emergencies. Emergency exit lighting should be illuminated at 50 to 100 lux, providing clear guidance for safe evacuation of passengers and staff.
Airport lighting is an intricate and essential aspect of airport operations, contributing to the safety, efficiency, and overall passenger experience. Selecting the best airport lighting involves understanding regulatory standards, assessing environmental conditions, considering energy efficiency, evaluating durability and maintenance, and enhancing visual comfort and safety. The various types of lights used across different airport areas, from runways and taxiways to aprons and terminals, play specific roles in ensuring smooth and secure airport activities. By implementing effective lighting solutions, airports can illuminate their journey towards excellence and provide a safe and welcoming environment for all.
