Tunnel lighting cost involves preparation, installation, and ongoing maintenance. The initial investment covers site assessments, electrical upgrades, system design, and regulatory approvals, with installation costs influenced by the type of lighting and labor. Maintenance, while lower for efficient LED systems, includes regular inspections, repairs, and energy consumption. Over time, LED systems offer substantial savings despite higher installation costs. Understanding these expenses ensures proper budgeting, helping to optimize safety, energy efficiency, and long-term performance in tunnel lighting projects.
Get your complimentary lighting design today
Lighting systems in tunnels serve more than just a functional purpose; they are an essential part of creating a safe and efficient environment for drivers and pedestrians. The costs associated with tunnel lighting, from installation to ongoing maintenance, involve numerous technical and financial considerations. Understanding the various factors that contribute to these costs is crucial for anyone involved in tunnel infrastructure projects. This guide provides an in-depth look at the different aspects that impact tunnel lighting costs, from the initial setup to the long-term operational expenses.
| Cost Category | Cost Range | Details |
|---|---|---|
| Preparation Costs | $150,000 – $1,000,000+ | Includes site surveys, electrical infrastructure upgrades, system design, and regulatory permits. |
| Site Survey and Assessment | $20,000 – $100,000 | Cost for assessing tunnel dimensions, environmental factors, and traffic patterns. |
| Electrical Infrastructure | $50,000 – $300,000+ | Upgrading or installing new electrical systems, including wiring, transformers, etc. |
| System Design and Engineering | $50,000 – $500,000 | Cost for planning the lighting system and ensuring compliance with safety and operational standards. |
| Regulatory Approvals & Permits | $10,000 – $50,000 | Fees for obtaining permits and ensuring the system meets regulatory safety standards. |
| Preliminary Construction | $50,000 – $200,000 | Costs for any necessary structural modifications to the tunnel for lighting installation. |
| Installation Costs | $500,000 – $2,000,000+ | Costs for lighting installation, including labor, materials, and equipment. |
| Lighting System (LED/Fluorescent/HPS) | $30 – $80 per square meter (LED) | Prices vary depending on the type of lighting system chosen. |
| Labor Costs | $50,000 – $500,000 | Labor for installation, including electrical contractors and specialized personnel. |
| Equipment and Materials | $50,000 – $200,000+ | Costs for lighting fixtures, electrical components, and specialized installation equipment. |
| Design and Engineering Costs | $50,000 – $500,000 | Cost for designing the lighting system, optimizing fixture placement, and meeting safety requirements. |
| Regulatory Compliance and Safety | $10,000 – $50,000 | Cost for safety audits and compliance with local laws and regulations. |
| Maintenance Costs | $10,000 – $100,000 per year | Ongoing maintenance, including inspections, repairs, and energy consumption. |
| Regular Inspections and Repairs | $1,000 – $20,000 per year | Cost of routine inspections, bulb replacements, and system repairs. |
| Energy Consumption | $5,000 – $50,000+ per year | Energy costs depend on the type of lighting system and tunnel usage. |
| Total Annual Maintenance | $10,000 – $100,000 | Overall yearly maintenance cost based on tunnel size, lighting technology, and usage. |

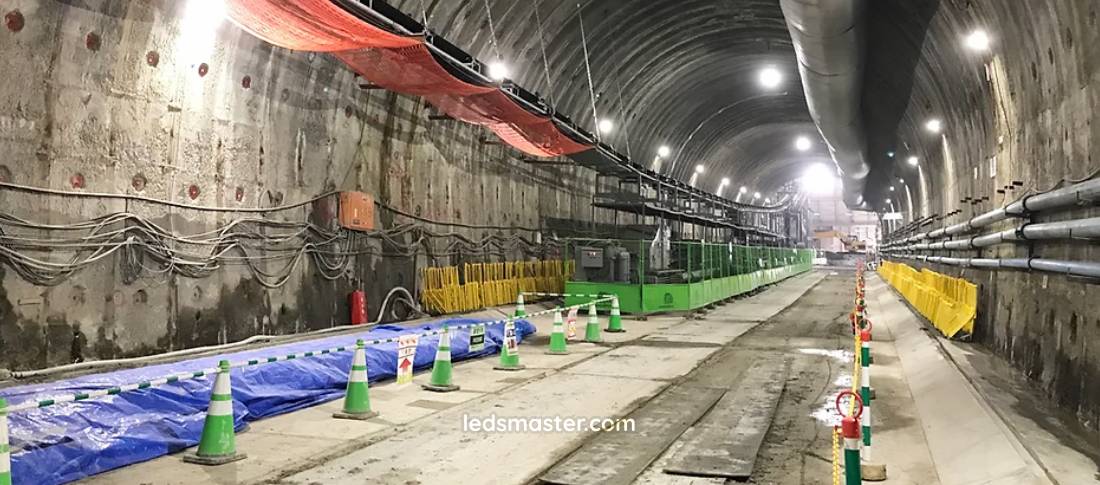

Before any tunnel lighting system can be installed, there are various preparatory steps and costs that must be considered. The initial phase of tunnel lighting projects involves not just the purchase and installation of lighting fixtures, but also the groundwork for ensuring the system is designed, planned, and ready to be put into action. This phase includes site surveys, electrical infrastructure work, system design, and regulatory approvals, all of which contribute to the initial investment required before installation can commence.

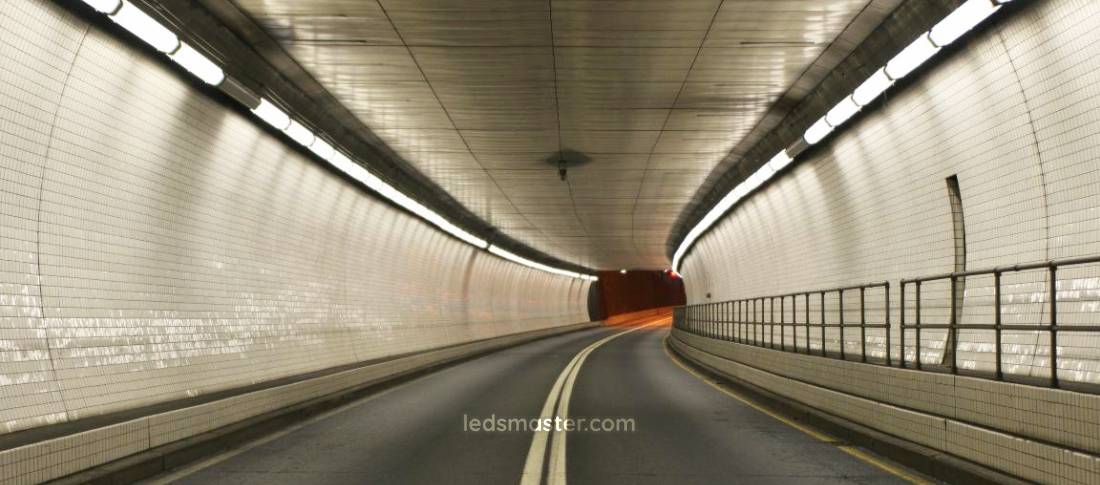

The first step in preparing for tunnel lighting installation is conducting a thorough site survey and assessment. This involves a detailed examination of the tunnel’s physical dimensions, environmental conditions, and traffic patterns. The survey helps to determine the specific lighting requirements, such as the appropriate brightness levels, the number of fixtures needed, and the most efficient placement of lights. Environmental factors, including humidity, temperature extremes, and the possibility of flooding, also play a role in selecting the most suitable lighting system for the tunnel. This stage typically involves engineers and specialists in tunnel infrastructure who assess the space and make recommendations.
The cost of conducting these surveys can vary depending on the size and complexity of the tunnel, but typically ranges from $20,000 to $100,000. Larger or more intricate tunnels may incur additional fees due to the complexity of the required assessments.
Once the site assessment is completed, the next major step is ensuring that the tunnel has the appropriate electrical infrastructure to support the lighting system. This can include upgrading power supplies, wiring systems, and circuit breakers to handle the load of the new lighting system. Depending on the age of the tunnel and its existing infrastructure, significant upgrades may be needed. For example, older tunnels may need new electrical panels, lighting circuits, or even transformers to accommodate the higher power demands of modern lighting technologies such as LED or smart lighting systems.
Electrical infrastructure upgrades are often a substantial portion of the initial cost, and can range from $50,000 to several hundred thousand dollars. Tunnels with outdated electrical systems or those located in regions with unstable power supplies may require more extensive and expensive upgrades to ensure reliable operation.
Once the groundwork has been laid with site assessments and electrical preparations, the next step is system design and engineering. This phase involves creating detailed plans for the layout of the lighting system, choosing appropriate lighting technology, and ensuring compliance with local safety and regulatory standards. Designers will also determine the optimal type of lighting fixtures, including considerations such as brightness, energy efficiency, and durability.
The engineering team will address the technical aspects of how the lighting system will function, ensuring that it provides the required illumination while minimizing energy consumption. These designs also consider the need for any special features, such as dimming capabilities or the integration of sensors to adjust lighting based on traffic flow.
Design and engineering services typically cost between $50,000 and $500,000, depending on the complexity of the system and the specific needs of the tunnel. Larger tunnels or those located in densely populated urban areas may incur higher design costs due to the complexity of the installation and the regulatory requirements involved.
Before moving forward with the installation, obtaining the necessary regulatory approvals and permits is a crucial part of the preparation process. Tunnel lighting must meet a range of safety, environmental, and operational standards set by local authorities, and the installation must comply with these regulations. The process involves submitting detailed plans for approval, ensuring that the lighting system will not only function effectively but also enhance the safety of tunnel users.
The cost of securing permits and ensuring compliance with regulations can vary greatly depending on the region. In some areas, these fees may range from a few thousand dollars to over $50,000, particularly in regions with strict environmental or safety regulations. This can add significant costs to the preparation phase but is a necessary step in ensuring that the lighting system is safe, reliable, and legal.
In addition to the electrical and engineering preparation, some preliminary construction work may be required. This could include modifications to the tunnel’s structure to accommodate lighting fixtures, such as the installation of mounting brackets or access points for wiring. If the tunnel requires additional space for wiring, ducts, or fixtures, the cost of construction can increase. The construction work may also include the installation of protective barriers around lighting components to ensure they are safe from damage or accidental contact.
Preliminary construction work can add anywhere from $50,000 to $200,000 to the initial cost, depending on the scale of the tunnel and the modifications needed.
When all the preparatory steps are considered, the initial cost of installing tunnel lighting can add up to a substantial amount. From site surveys and electrical upgrades to system design and regulatory compliance, these early steps can cost anywhere from $150,000 to several million dollars. The overall cost will largely depend on the size and complexity of the tunnel, the lighting technology chosen, and the specific environmental conditions and regulatory requirements of the location.
These initial preparation costs are critical for ensuring that the tunnel lighting system is properly designed, efficiently installed, and meets all necessary safety standards. Proper planning and budgeting for these expenses are essential for the success of the tunnel lighting project, as they lay the foundation for both the installation and future maintenance of the lighting system.

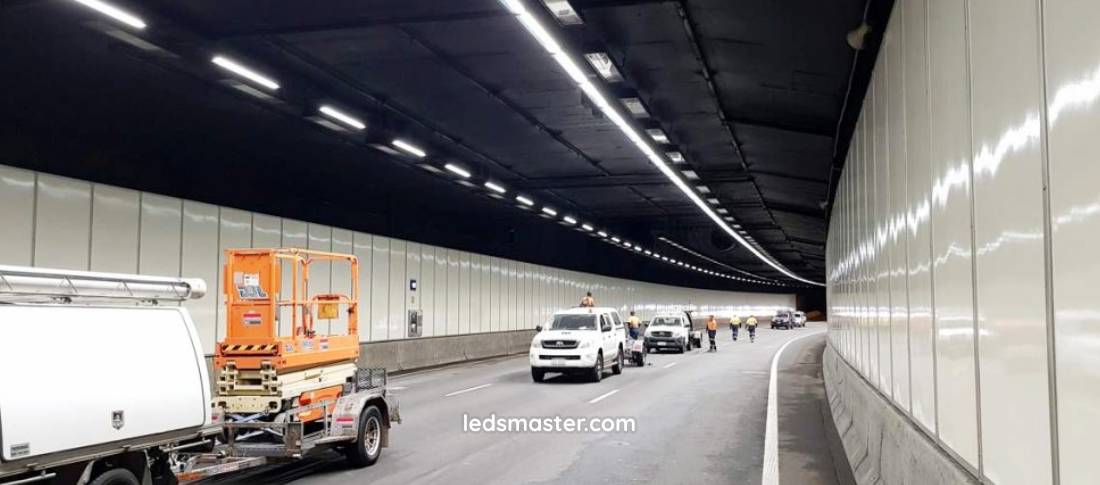

The installation of tunnel lighting represents a significant portion of the total cost of the lighting system. This process involves not only the purchase of materials but also the labor required to install and set up the system. The total installation costs are influenced by various factors, including the type of lighting system chosen, the size and complexity of the tunnel, and the specific site conditions.
One of the primary determinants of installation costs is the type of lighting system selected. Different types of lighting technologies come with varying price points, installation requirements, and energy consumption characteristics. Commonly used lighting systems for tunnels include LED, fluorescent, and high-pressure sodium (HPS) lights. Each system has its own benefits and challenges, which can significantly impact both the initial installation costs and long-term operating expenses.
LED lighting systems, while more expensive to install than fluorescent or HPS lights, are often the preferred choice for modern tunnel lighting. LED lights are known for their energy efficiency, long lifespan, and low maintenance requirements. Despite the higher upfront costs, LEDs typically pay off in the long run due to their energy savings and durability, reducing the need for frequent replacements. The installation cost for LED systems typically ranges between $30 and $80 per square meter, depending on the tunnel’s specifications and lighting requirements.
Fluorescent lighting, on the other hand, is more cost-effective at the time of installation, but it comes with a shorter lifespan and higher maintenance costs compared to LEDs. The overall installation cost for fluorescent systems is generally lower than for LEDs, but it may end up being more expensive in the long term due to the need for more frequent bulb replacements and maintenance.
High-pressure sodium (HPS) lights, though once the standard for tunnel lighting, are less commonly used today due to their high energy consumption and relatively short lifespan compared to newer technologies. HPS lights provide a very bright, yellowish light and are still found in some older tunnels. The initial installation cost of HPS systems is usually lower than that of LEDs but higher than fluorescent systems. However, their energy usage and maintenance costs make them a less appealing choice in the long run.
Labor costs are a significant part of the total installation expenses. Installing a tunnel lighting system requires specialized personnel, including electrical contractors, engineers, and safety technicians. The installation process is highly technical and often involves working in confined spaces, making it more labor-intensive compared to other types of construction projects. Tunnel lighting installation requires ensuring that the lights are positioned at precise intervals and angles to ensure uniform illumination throughout the tunnel. This often necessitates the use of cranes or lifts to position the lights properly.
Furthermore, electrical work is required to ensure that the lights are properly wired, connected to the power supply, and integrated into the tunnel’s electrical infrastructure. The complexity of this process can add to the labor cost, especially in tunnels with older electrical systems that may require upgrades or modifications.
Labor costs can vary depending on the size of the tunnel and the region in which the project is being carried out. In general, labor costs for tunnel lighting installation can range from $50,000 to $500,000, depending on the project’s scale and complexity. Larger tunnels or tunnels with intricate designs and hard-to-reach areas will require more labor and longer installation times, which can significantly increase labor costs.
The equipment and materials required for tunnel lighting installation also contribute to the overall cost. This includes the lighting fixtures themselves, electrical components such as wiring, transformers, circuit boards, and mounting hardware. The cost of these materials will depend on the type of lighting system chosen, as well as the tunnel’s specifications and requirements.
LED lighting fixtures, for example, are generally more expensive than fluorescent or HPS fixtures. However, the added cost is often offset by the reduced energy consumption and longer lifespan of the lights. The materials required to install a tunnel lighting system, including wiring and electrical components, can cost anywhere from $50,000 to several hundred thousand dollars, depending on the size and complexity of the tunnel.
In addition to the lighting fixtures and electrical components, installation equipment such as scaffolding, lifts, cranes, and other tools may be needed to position the lights in the tunnel. This specialized equipment adds another layer to the installation cost. The cost of renting or purchasing this equipment can range from $20,000 to $100,000 or more, depending on the duration of the project and the equipment required.
Design and engineering costs are another crucial component of the installation process. These costs include the fees associated with designing the lighting system, ensuring that it meets safety standards, and creating a layout that provides uniform illumination throughout the tunnel. The design process involves calculating the appropriate light levels for the tunnel, determining the optimal placement of fixtures, and addressing any unique challenges posed by the tunnel’s shape or environmental factors.
Additionally, engineers must ensure that the lighting system integrates seamlessly with the tunnel’s electrical infrastructure, accounting for power consumption and efficiency. These engineering and design costs can add anywhere from $50,000 to $500,000 to the total installation cost, depending on the tunnel’s size and complexity. Tunnels in more challenging environments, such as those in densely populated urban areas or areas with extreme weather conditions, may incur higher design costs due to the added complexity.
The total cost of installing a tunnel lighting system will depend on a variety of factors, including the size of the tunnel, the type of lighting chosen, the complexity of the installation, and the labor and equipment required. On average, installation costs for a standard tunnel can range from $500,000 to $2 million. Larger, more complex tunnels—such as those with multiple lanes, curved sections, or those requiring specialized lighting systems—can see installation costs that exceed $2 million.
For tunnels that use advanced technologies such as LED or smart lighting systems, installation costs can be higher due to the additional equipment and more specialized installation processes. However, these systems offer substantial savings in energy and maintenance costs over time, making them a cost-effective choice in the long run.
In summary, installation costs for tunnel lighting systems can vary widely depending on a range of factors, including the lighting technology chosen, the tunnel’s size and complexity, and the need for specialized labor and materials. Understanding these costs is essential for project planning and budgeting, as they represent a significant investment in the long-term safety and efficiency of the tunnel.
The maintenance of tunnel lighting is a continuous and necessary expense that ensures the system remains functional, efficient, and safe. Maintenance costs can vary depending on the type of lighting system used, the environmental conditions of the tunnel, and the frequency of maintenance activities. These costs can be divided into two main categories: regular inspections and repairs, and energy consumption.
Routine maintenance involves periodic inspections of the tunnel lighting system to ensure that all fixtures are operational and meet safety standards. This includes checking for malfunctioning bulbs, damaged wiring, and worn-out components. The inspection process also involves cleaning light fixtures, as dust and debris can reduce their effectiveness and energy efficiency. For tunnels with high levels of traffic or those located in harsh environments, these inspections may need to be more frequent, adding to the overall maintenance cost.
In addition to inspections, repairs are sometimes necessary. Components such as bulbs, ballasts, and wiring may need to be replaced or repaired over time. While LED lighting systems require less frequent replacement due to their longer lifespan, fluorescent and high-pressure sodium lights may need more frequent attention. The cost of repairs can vary depending on the extent of the damage or wear, with minor repairs costing a few hundred dollars and more extensive repairs potentially reaching several thousand dollars.
Energy consumption is one of the most significant ongoing costs of tunnel lighting. The type of lighting system directly impacts energy usage, with LED lighting being the most energy-efficient option available. LED lights use up to 75% less energy than traditional fluorescent or high-pressure sodium lighting systems. As a result, energy costs for LED-lit tunnels are substantially lower compared to older lighting systems.
For example, energy consumption for a tunnel lit with fluorescent lights can cost $20,000 to $50,000 annually, while an LED-lit tunnel can reduce this cost to as low as $5,000 to $15,000 per year, depending on the size of the tunnel and its usage. The reduced energy consumption is one of the key advantages of upgrading to LED lighting, both in terms of environmental impact and cost savings.
The overall maintenance costs for tunnel lighting systems can range from $10,000 to $100,000 annually, depending on the size of the tunnel, the lighting technology used, and how frequently maintenance is required. Tunnels with older or less energy-efficient systems will generally have higher maintenance costs, especially when factoring in energy consumption and more frequent component replacements.
While the maintenance costs of LED systems are lower over time due to their energy efficiency and longer lifespan, the initial savings may be offset by the higher upfront installation costs. However, for most tunnel operators, the long-term savings in energy and reduced maintenance activities make LED systems a cost-effective choice. In comparison, older systems like fluorescent or HPS lights tend to incur higher maintenance costs in terms of repairs and energy use.
In conclusion, while tunnel lighting maintenance costs are an ongoing concern, advancements in technology—especially the widespread adoption of LED lighting—have made significant improvements in both energy efficiency and reduced maintenance requirements. By properly managing these maintenance tasks and opting for more efficient lighting systems, long-term costs can be minimized while ensuring safe and effective tunnel lighting.
Several factors influence the overall cost of tunnel lighting, both in terms of installation and maintenance. These factors include the size of the tunnel, its location, the specific lighting system chosen, and the environmental conditions to which the tunnel is exposed.
One of the primary factors that affects the cost is the size and complexity of the tunnel. Larger tunnels require more lighting fixtures, more labor for installation, and more energy to operate. Additionally, complex tunnel designs that feature multiple levels, curves, or intersections require more intricate lighting systems and specialized installations. For example, smaller tunnels might require an investment of $100,000 to $200,000 for lighting systems, while a larger, multi-lane tunnel could easily see costs that run into the millions for both installation and ongoing upkeep.
Location and environmental conditions also play a role in determining the cost of tunnel lighting. Tunnels located in regions with extreme weather conditions—such as coastal areas with high humidity or regions that experience heavy snowfall—require more durable lighting systems. These lighting fixtures may need to be specially designed to withstand the harsh environmental factors present. For instance, lighting systems in tunnels that experience frequent freezing temperatures may need additional insulation or heating components to prevent ice buildup, which can increase both installation and maintenance costs.
Similarly, tunnels located in flood-prone areas or areas with high levels of moisture may require waterproof lighting fixtures. These specialized components tend to cost more upfront but help ensure the longevity and reliability of the system in challenging conditions.
Regulatory standards also influence tunnel lighting costs. Safety standards require that lighting systems maintain a minimum level of illumination for both drivers and pedestrians. These standards may require more sophisticated lighting designs or specific technologies, such as systems that adjust the intensity of the lights based on traffic flow or environmental conditions. Compliance with these regulations can lead to higher installation and maintenance costs, but it is necessary to ensure the safety of those using the tunnel.
Tunnel lighting involves a range of costs, from the initial installation to ongoing maintenance. Factors such as tunnel size, lighting technology, location, and environmental conditions all contribute to the final expenditure. While the upfront costs of installing a lighting system can be significant, energy-efficient technologies, such as LED and smart lighting systems, can provide substantial savings in the long term. Additionally, advancements in monitoring and maintenance technologies can further reduce ongoing costs, making tunnel lighting systems more efficient and cost-effective. By considering all of these factors, stakeholders can make informed decisions that balance safety, efficiency, and cost-effectiveness when planning and managing tunnel lighting systems.
