Tunnel lighting design ensure safety and efficiency. It involves meeting lux standards for different tunnel types, selecting the right color temperature, maintaining consistent light distribution, and managing glare. Proper lighting provides clear visibility while avoiding distractions and discomfort. Balancing sufficient brightness with energy efficiency is important. Tunnel geometry and traffic types must be considered when designing lighting systems. A well-executed lighting plan enhances safety and comfort for both drivers and pedestrians, offering a smoother, more secure tunnel experience with improved visibility.
Get your complimentary lighting design today
Tunnel lighting design is a specialized field aimed at ensuring safety and comfort for drivers and pedestrians passing through tunnels. As tunnels serve as vital connectors between areas, the design of lighting systems must be done thoughtfully to meet various standards and requirements. Lighting within tunnels is not just about visibility; it also involves considerations of energy efficiency, cost, and the aesthetic appeal of the tunnel’s environment.
A well-designed tunnel lighting system ensures that there is adequate illumination to facilitate smooth travel, enhances the safety of the tunnel’s users, and minimizes glare and shadows. It also plays a part in reducing energy consumption while maintaining the visual appeal of the tunnel.
| Tunnel Type | Required Average Horizontal Illuminance (Lux) | Minimum Illuminance (Lux) | Uniformity Ratio (Minimum) |
|---|---|---|---|
| Highway Vehicle Tunnel | 100-150 Lux | 60 Lux | 0.4 |
| Urban Highway Tunnel | 150-200 Lux | 80 Lux | 0.5 |
| Pedestrian Tunnel | 50-100 Lux | 30 Lux | 0.6 |
| Long Tunnel (e.g., mountain tunnels) | 150-200 Lux | 90 Lux | 0.45 |
| Short Tunnel | 80-120 Lux | 50 Lux | 0.4 |
One of the primary factors in tunnel lighting design is the level of lighting required to ensure safe and efficient passage. The lighting in tunnels must be tailored to the specific dimensions of the tunnel, the type of traffic it accommodates, and the environment surrounding the tunnel. Tunnels can vary in length, width, and curvature, and lighting should be able to adapt to all these factors to maintain optimal visibility.

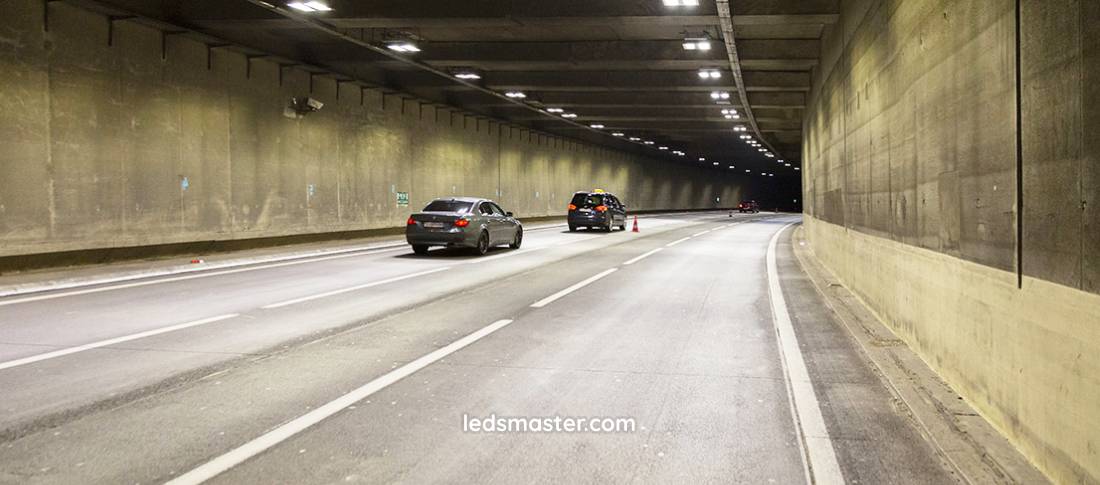

The first step in determining the lighting needs of a tunnel is assessing the type of traffic it will accommodate. For example, tunnels designed for highway use need brighter and more robust lighting systems because vehicles are moving at higher speeds, often exceeding 100 km/h (62 mph). In contrast, tunnels designed for pedestrian or local traffic can use lower lighting levels, but still must provide adequate illumination for safe navigation.
The dimensions of the tunnel are another important consideration. Longer and wider tunnels, especially those with curves, require more lighting or more strategically placed lights to ensure that all areas are adequately illuminated. For instance, in very long tunnels, additional lighting may be needed to maintain a consistent level of illumination across the tunnel, particularly in areas that are further from the entry or exit.
The tunnel lighting system must also be designed to accommodate the speed of vehicles traveling through it. Lighting levels should be sufficient to allow drivers to see road signs, hazards, or obstacles clearly from a distance, even at high speeds. For highway tunnels where traffic is often moving at 120 km/h (75 mph) or more, the lighting system must ensure that drivers have enough time to react to any unexpected circumstances, such as sudden lane changes or objects on the road.
To balance between safety and comfort, the lighting must not be overly bright or create excessive glare, as this could impair vision and reduce safety. Proper lighting levels help reduce the likelihood of accidents by providing adequate visibility without causing discomfort to the drivers.

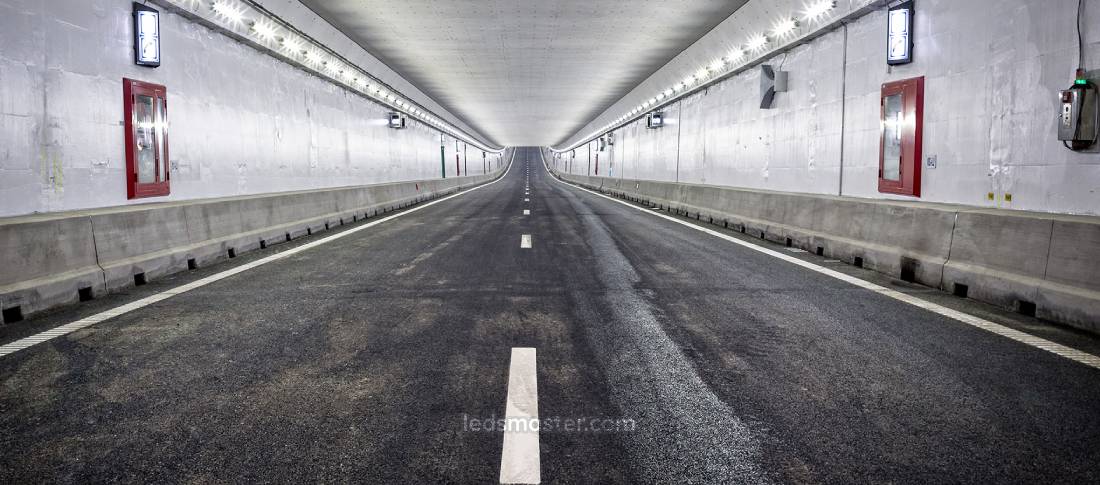

The lux requirement in tunnel lighting refers to the level of illuminance needed to ensure safe and effective visibility for both drivers and pedestrians within the tunnel. Properly calculated lux levels are essential for creating a comfortable and safe environment in tunnels, regardless of whether the tunnel accommodates vehicles or pedestrians. The level of lighting depends on various factors, including the tunnel’s length, its curvature, the type of traffic, and the environment surrounding the tunnel. Below, we discuss the key aspects influencing the lux requirements in tunnel lighting.
For vehicular tunnels, one of the primary considerations is horizontal illuminance, which ensures that the road surface is adequately lit for drivers. The average horizontal illuminance is typically expressed in lux, and for highway tunnels, it is commonly recommended that the lighting should provide around 100 lux. However, this number may increase or decrease depending on the specific design of the tunnel.
Longer tunnels or tunnels with complex geometry (e.g., curves or slopes) may require higher illuminance levels to maintain visibility, whereas tunnels with more straightforward designs may have lower requirements. The goal is to ensure that drivers can clearly identify road signs, lane markings, and potential hazards well in advance, especially when driving at higher speeds.
In pedestrian tunnels, the lux requirements are typically lower than those for vehicular tunnels, as pedestrians generally move at slower speeds and do not face the same level of risk as drivers. However, it is still crucial to ensure adequate lighting to allow pedestrians to navigate safely through the tunnel, particularly during nighttime or in dimly lit areas.
The recommended illuminance for pedestrian tunnels typically ranges from 50 lux to 100 lux, depending on factors such as tunnel length, visibility, and pedestrian traffic density. Tunnels with high pedestrian traffic may require higher lux levels to ensure safety, while less frequently used pedestrian tunnels may be designed with lower levels.
Tunnel geometry plays a key role in determining the lux requirement for effective lighting. Tunnels with curves, steep slopes, or irregular cross-sections may need a more complex lighting design to ensure uniform lighting distribution. In such cases, the lighting design may have to account for variations in illuminance across different sections of the tunnel to prevent dark spots or overly bright areas, which can lead to glare.
In curved tunnels, additional lighting or targeted fixtures may be needed to ensure that drivers or pedestrians can clearly see potential hazards and lane markings as they navigate the turns. This is especially important for highways, where high speeds and sharp turns could cause safety issues if the lighting does not allow for sufficient visibility.
Another important factor influencing the lux requirement is the transition from the exterior environment into the tunnel and vice versa. Sudden changes in lighting levels between the tunnel’s interior and the entrance or exit can cause temporary vision impairment or discomfort for drivers.
To avoid this issue, lighting at the entrances and exits may need to be adjusted to gradually increase or decrease the illuminance levels. In practice, this may involve implementing portal lighting systems that help ease the transition, ensuring that drivers are not abruptly exposed to extreme differences in light levels, which can lead to glare and disorientation.
In certain circumstances, such as emergency situations, the lux levels in tunnels may need to be increased to provide clear visibility for evacuation procedures or to help emergency personnel navigate the space quickly. Emergency lighting systems, often equipped with backup power supplies, ensure that tunnel users can evacuate safely during power outages or accidents. These lighting systems are designed to operate at higher lux levels than regular tunnel lighting to ensure maximum visibility during an emergency.
By understanding and applying the appropriate lux requirements in tunnel lighting design, engineers can create environments that prioritize user safety and comfort, while maintaining energy efficiency and long-term functionality. Proper lux levels prevent both under-illumination and over-illumination, ensuring that tunnel lighting meets both safety standards and user expectations.

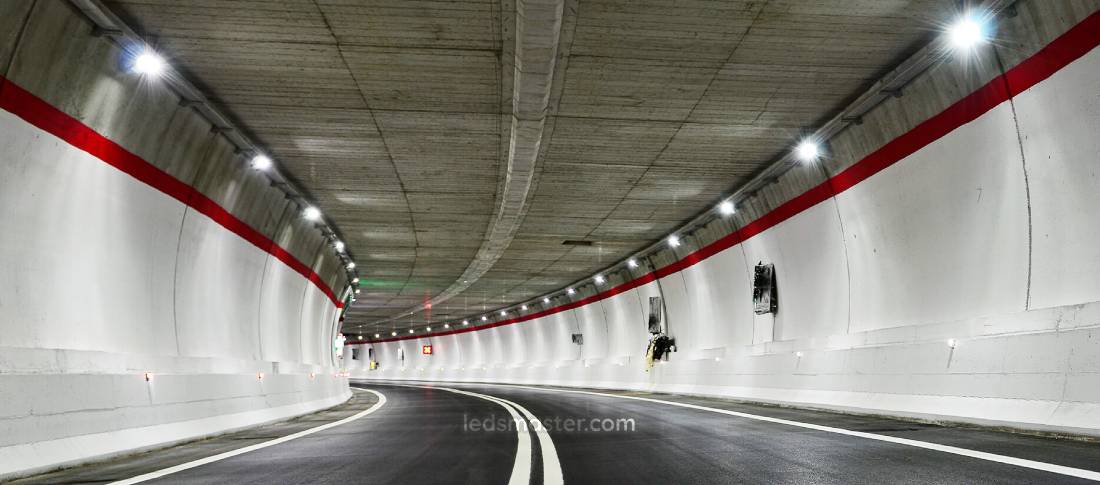

One of the most important factors influencing the quality of light in tunnel environments is the color temperature of the lighting system. Color temperature, measured in Kelvins (K), determines whether the light appears warm or cool, and it directly impacts both the visual comfort and the visibility for those traveling through tunnels. It is crucial to select the right color temperature to ensure that the lighting not only provides sufficient illumination but also enhances safety, clarity, and overall comfort for tunnel users.
Color temperature can be thought of as the “feel” or ambiance of the light. Lights with lower color temperatures (below 3000K) appear warmer, producing a yellowish or reddish glow, while lights with higher color temperatures (above 5000K) produce cooler, bluish light. The color temperature of the light used in tunnels can have far-reaching effects on visibility, user orientation, and even driver and pedestrian stress levels.
For most tunnel environments, cooler color temperatures are generally preferred due to their ability to enhance clarity, contrast, and visibility. Cool white light, typically in the range of 4000K to 5000K, is ideal for ensuring that users can clearly distinguish objects and hazards in the tunnel. The cooler tones of these light levels are particularly advantageous for high-speed traffic in tunnels, as they improve the contrast between the roadway, walls, and any potential obstacles. This makes it easier for drivers to identify important elements like road signs, lane markings, and other vehicles, which is essential for both safety and efficient traffic flow.
Another major advantage of cool light in tunnel environments is its ability to replicate natural daylight, which helps maintain the user’s orientation and reduces disorientation during transitions from the bright exterior world to the darker tunnel interior. Without proper lighting that mimics natural daylight, drivers and pedestrians may experience temporary vision impairment when entering a tunnel, which could increase the risk of accidents. The clear, white light provided by cool temperatures assists in counteracting this effect and helps to maintain visual clarity in the tunnel, making it easier for users to adjust to the shift from light to dark.
One of the primary functions of lighting within tunnels is to ensure high visibility. This is particularly crucial for detecting any potential hazards or obstacles, such as debris, road signs, or other vehicles, which could be obscured in a dimly lit environment. Cool light, specifically in the 4000K to 5000K range, has been found to improve contrast in tunnel environments by providing better delineation between objects and their surroundings. The enhanced contrast helps drivers and pedestrians perceive hazards more easily, which is crucial for preventing accidents in tunnels, especially in areas with heavy traffic.
When cool light is used, it helps to bring out fine details, such as the texture of road surfaces or the visibility of critical signage, allowing for quicker reaction times and better overall decision-making. In contrast, warmer lighting can reduce contrast and make it harder to detect such details, especially for fast-moving vehicles. A tunnel’s lighting system must be designed with sufficient contrast to accommodate high-speed drivers, and this is typically achieved through the use of cooler color temperatures.
While cooler light is generally recommended for tunnel environments, warm white light (below 3000K) has its place in certain contexts. Warm light creates a softer, more relaxing atmosphere, which may be preferred for environments where visual comfort is prioritized over safety. In residential or aesthetic areas, warm lighting can evoke a sense of calm and reduce eye strain for people who are walking or spending longer amounts of time within the tunnel.
However, for tunnels designed to accommodate high-speed vehicular traffic, using overly warm lighting may introduce potential safety concerns. Warm white light tends to reduce the contrast between the road and objects in the environment, making it more difficult to distinguish obstacles, lane markings, or other critical elements from the tunnel surroundings. This is particularly problematic in tunnels with higher speeds, where drivers require immediate and clear visual cues to make fast decisions.
Moreover, warm light can contribute to the perception of a “dimmer” or “less sharp” environment, which can cause tunnel users to feel disoriented or even fatigued during longer journeys. This may lead to slower reaction times, which is undesirable in high-speed traffic conditions. Therefore, while warm lighting may be suitable for pedestrian-focused tunnels or tunnels designed for slower-moving vehicles, it is generally avoided in tunnels with significant vehicle traffic or where safety and visibility are of the utmost concern.
In some cases, tunnel lighting designers may opt for a balance between warm and cool light sources, creating a transition zone where the lighting shifts in color temperature. This can help to achieve a comfortable, visually appealing atmosphere without compromising the overall safety and performance of the lighting system.
For example, the use of warm light may be more appropriate in the outer sections of a tunnel, where users are just entering or exiting the tunnel, or in areas where the tunnel is located near residential or scenic areas. However, as the tunnel moves further into its core sections, cooler temperatures may gradually take over to enhance visibility and contrast, as well as to provide better functionality for drivers and pedestrians. This gradual shift in color temperature can offer a more inviting experience for users while still meeting the performance requirements necessary for high-speed traffic zones.
Furthermore, the use of lighting that changes according to the specific needs of the tunnel’s users can be an effective solution. For instance, during nighttime hours or in tunnels with lower traffic, dimmer and warmer lighting could be used to create a softer ambiance, reducing light pollution and conserving energy. During peak traffic periods or during emergencies, however, lighting can be adjusted to brighter, cooler temperatures to increase visibility and improve safety.
Uniformity of light distribution is a critical aspect of tunnel lighting design that ensures a consistent and even spread of light throughout the tunnel’s interior. The primary goal of achieving uniform lighting is to eliminate areas of excessive brightness or dark patches, both of which can cause discomfort, distraction, and safety hazards for tunnel users. Uneven lighting can lead to glare, impairing the vision of both drivers and pedestrians, which can increase the risk of accidents. Therefore, tunnel lighting must be carefully designed to maintain consistent illumination across the tunnel, ensuring both safety and visual comfort.
A tunnel’s lighting should avoid noticeable contrasts in brightness. For instance, overly bright patches or sudden transitions to dim areas can disrupt a driver’s focus, potentially leading to accidents or slow reaction times. For pedestrians, areas with insufficient lighting can create a sense of insecurity, especially in longer or more isolated tunnels. By ensuring uniform light distribution, tunnels provide a comfortable and safe environment that allows users to navigate confidently and without strain.
To achieve this, tunnel lighting systems should be strategically planned to cover all areas with consistent brightness. This involves placing light fixtures in a way that prevents glare and ensures the entire tunnel interior is illuminated at levels that support clear visibility. Additionally, tunnel walls and ceiling surfaces should be designed to reflect and diffuse light evenly, helping to spread illumination more effectively.
The uniformity of tunnel lighting is typically quantified using a ratio known as the uniformity index. This ratio compares the minimum illuminance (the lowest light level in the tunnel) to the average illuminance (the average level of light throughout the tunnel). A higher uniformity index signifies more consistent lighting distribution, which is important for safety and comfort.
For vehicular tunnels, the uniformity ratio should ideally not fall below 0.4. This means that the minimum illuminance should be at least 40% of the average illuminance. A uniformity ratio of 0.4 ensures that dark spots are minimized, while the lighting remains bright enough throughout the tunnel to allow drivers to identify road signs, lane markings, and potential hazards in advance. For pedestrian tunnels, a slightly higher uniformity ratio of up to 0.6 is typically recommended. Pedestrian tunnels may require a more even lighting distribution to ensure safe movement, as pedestrians typically move at slower speeds and rely heavily on a steady light source to maintain orientation.
Achieving a high degree of uniformity requires careful planning of light placement, fixture types, and light distribution characteristics. The light fixtures in a tunnel should be positioned in a way that minimizes the occurrence of shadows or overly bright spots. One way to enhance uniformity is through the use of asymmetric light fixtures, which help distribute light evenly along the tunnel’s length and width.
In addition, the type of light source plays an important role in uniformity. LEDs, which are commonly used in modern tunnel lighting designs, offer excellent light distribution and can be positioned in a way that ensures even coverage. Their longevity and energy efficiency also make them a reliable choice for maintaining consistent light levels over time.
While achieving uniform light distribution is essential, it is equally important to balance this with energy efficiency. Over-illumination can lead to unnecessary energy consumption, which is costly and environmentally unsustainable. To prevent this, advanced lighting control systems are often employed in tunnel lighting designs. These systems adjust light levels based on traffic flow, time of day, or weather conditions, ensuring that lighting is only as bright as needed at any given time. This way, uniformity is maintained without compromising energy savings.
Glare is a significant concern in tunnel lighting design, as it can substantially impair vision, leading to safety issues for both drivers and pedestrians. Glare is caused by the contrast between the bright exterior environment and the typically darker interior of the tunnel. This contrast often results in drivers experiencing difficulties in adjusting their vision, which can lead to dangerous situations, particularly when entering or exiting the tunnel. The issue of glare is commonly referred to as “entrance glare” when entering the tunnel and “exit glare” when leaving the tunnel.
Managing and controlling glare is critical in ensuring a safe and comfortable experience for tunnel users. A well-designed tunnel lighting system must mitigate the negative effects of glare by addressing the abrupt changes in brightness levels that occur as vehicles transition between the bright outdoor environment and the dark tunnel interior. This requires thoughtful planning and engineering to create smooth transitions and prevent vision impairment.
Entrance glare occurs when a vehicle enters the tunnel from a brightly lit exterior environment, such as daytime traffic or brightly lit urban streets, and is suddenly exposed to the much darker tunnel interior. This sharp contrast in light intensity can cause drivers to experience temporary blindness or visual discomfort as their eyes adjust to the dimmer lighting inside the tunnel. During this adjustment period, drivers may not be able to clearly see lane markings, road signs, or other vehicles, significantly increasing the risk of accidents.
To address entrance glare, lighting designers use various strategies to create gradual transitions from the outside environment into the tunnel. One common approach is the installation of intermediate lighting zones at the tunnel entrance. These areas provide a gradual shift in lighting intensity, easing the transition from the daylight exterior to the tunnel’s darker interior. These transitional sections help avoid the sudden change in brightness that would otherwise cause discomfort and disorientation for drivers. By using intermediate lighting zones, tunnel users can adjust more smoothly to the change in lighting conditions, improving their overall visibility and reaction times.
Exit glare, which occurs when vehicles exit the tunnel and transition from the darker tunnel interior to the bright exterior environment, is equally as problematic. The sudden exposure to intense natural light can cause temporary blindness, as the eyes are forced to adjust from the low light conditions inside the tunnel to the much higher light levels outside. This abrupt change in brightness can be just as disorienting as entrance glare, making it difficult for drivers to quickly adapt and safely navigate their surroundings.
To prevent exit glare, designers can incorporate transitional lighting at the tunnel’s exit. This transitional lighting gradually increases in intensity as vehicles approach the tunnel exit, reducing the shock of entering bright sunlight. This allows drivers to adjust their vision in a controlled manner, ensuring they maintain clear sightlines and are not distracted or impaired by the sudden change in brightness. Exit glare can also be minimized through the use of adjustable dimming mechanisms that can regulate lighting levels as vehicles exit the tunnel, ensuring a smooth transition to daylight without overwhelming the eyes.
A highly effective strategy for controlling glare in both entrance and exit areas involves the use of tunnel portals or entrances with lighting features that gradually increase or decrease the illumination levels as vehicles approach. These portals act as transitional zones, easing the shift from bright to dark and vice versa. By strategically designing the portal and intermediate lighting sections, the lighting intensity can be adjusted to reduce sudden brightness changes and make the transition more comfortable for drivers.
For example, tunnel lighting can begin at a reduced intensity several meters before the tunnel entrance, gradually increasing to the desired illumination level as vehicles enter the tunnel. Similarly, upon exiting the tunnel, lighting can begin at a higher intensity and gradually dim as vehicles approach the tunnel’s exit. This approach provides a seamless transition between environments, mitigating glare and reducing visual discomfort.
Modern tunnel lighting systems are often equipped with dimming mechanisms that adjust the light levels based on real-time conditions, such as the amount of natural light outside, the time of day, and traffic volume. These systems can be programmed to automatically dim or brighten the lights at various sections of the tunnel to maintain optimal illumination while preventing glare. For instance, when the outside light level is particularly bright during the day, the lighting inside the tunnel may be adjusted to be slightly lower in intensity, ensuring a smooth transition between environments.
Additionally, dimming systems can be used to adapt to changes in traffic flow. During peak traffic periods, when more vehicles are entering or exiting the tunnel, the lighting can be increased to compensate for the added volume of traffic. During off-peak times, when traffic is light, the lighting can be dimmed to conserve energy and reduce the overall intensity of the light inside the tunnel. This dynamic adjustment of lighting levels helps prevent excessive brightness that might otherwise cause glare, while also contributing to energy savings and sustainability efforts.
While it is essential to minimize glare, it is equally important to ensure that tunnel lighting provides adequate visibility for all users. A lighting system designed to control glare must also deliver sufficient illumination levels to maintain safe driving and walking conditions throughout the tunnel. This requires a delicate balance between brightness and comfort. The lighting should be bright enough to allow drivers and pedestrians to see obstacles, road signs, lane markings, and other critical visual cues, but not so bright that it causes discomfort or glare.
In vehicular tunnels, the lighting must meet the required lux levels to ensure that drivers can detect obstacles and road signs at an appropriate distance. At the same time, glare control mechanisms must be in place to prevent sudden transitions that could hinder a driver’s ability to see clearly. For pedestrian tunnels, the lighting needs to be bright enough to allow individuals to navigate the space safely without creating discomfort from glare or overly harsh lighting.
Tunnel lighting design is a multi-faceted field that combines engineering, safety, and energy management principles to ensure effective, reliable, and safe lighting in tunnels. By focusing on key aspects like lighting requirements, uniformity, color temperature, glare control, and energy efficiency, tunnel lighting systems can be optimized for both safety and sustainability. The ongoing adoption of smart technologies and energy-efficient solutions promises to improve the functionality and reduce the costs of tunnel lighting in the future, making it an ever-evolving field.
