Mining Lighting Design

Types of Mining Lighting

Surface Mining Lighting

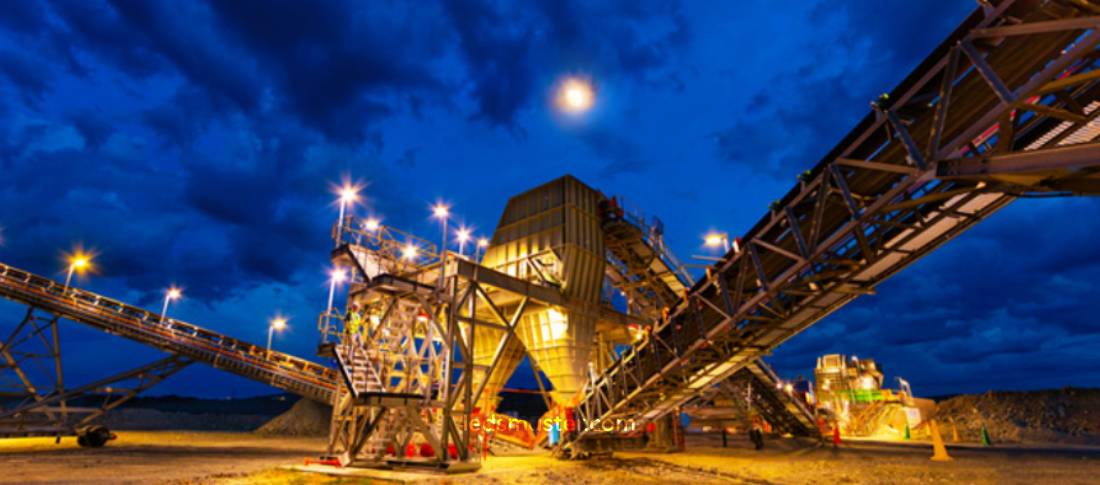

Surface mining often involves vast, open spaces that require high-intensity lighting to ensure visibility across large areas. Lighting for surface mining typically includes fixed installations such as high-power floodlights and area lights. These lights are positioned strategically to illuminate work areas such as excavation zones, processing plants, and vehicle paths. The use of mobile lighting towers is also common in surface mining operations. These portable units provide flexibility, allowing light to be directed to specific work zones as needed. With long operational hours and challenging weather conditions, surface mining lights must offer durability, strong light output, and minimal maintenance requirements.

Underground Mining Lighting

Lighting for underground mining presents distinct challenges compared to surface mining. Enclosed spaces, low ceilings, and confined tunnels make it necessary to use specialized lighting equipment. Underground lighting systems include both personal lighting devices and fixed installations. Miners often rely on headlamps attached to their helmets, providing direct illumination where needed. These headlamps need to be rugged and reliable to function continuously in hazardous and dark environments. Fixed lighting systems installed in tunnels and chambers provide additional illumination, ensuring that workers can safely navigate and operate machinery. The harsh conditions underground, such as humidity, dust, and debris, require lighting systems to be resistant to corrosion and designed for easy maintenance.

Portable and Temporary Lighting Solutions

These lighting systems are highly versatile and are typically used during maintenance, emergencies, or in areas that are not permanently lit. Battery-powered lights offer the advantage of mobility, allowing workers to illuminate specific areas where fixed lighting is not available. Portable lights often feature rechargeable batteries, providing a reliable source of illumination in remote locations. Solar-powered lighting systems are also gaining popularity, particularly in surface mining, where exposure to sunlight can power the lights sustainably. These lighting solutions not only reduce energy consumption but also minimize the need for extensive wiring and installation.

Lighting Requirements and Standards

Lux Levels

The intensity of light in mining environments is measured in lux, which indicates how much light is projected over a given area. Different mining tasks require specific lux levels to ensure optimal visibility. For instance, work areas where detailed tasks are performed may require higher lux levels, while transport areas or storage zones might need lower intensity lighting. The design of a mining lighting system must consider the varying lux requirements of different areas within the mine. Tunnels, ramps, and working faces need sufficient illumination to enhance worker safety and prevent accidents. Ensuring the appropriate lux levels throughout the mine is a primary concern in lighting design.

Color Temperature

The color temperature of light refers to its appearance, typically measured in kelvins (K). In mining, cooler color temperatures—ranging from 5000K to 6500K—are often preferred. These cooler temperatures produce a bright, white light that enhances visibility and helps workers distinguish colors more accurately. The selection of the right color temperature can also impact worker fatigue, as certain lighting conditions can cause eye strain over time. Lighting with proper color temperature ensures better concentration, fewer errors, and improved safety in high-risk environments like mining.

CRI (Color Rendering Index)

The color rendering index (CRI) is a measure of how accurately a light source reveals the colors of objects compared to natural sunlight. In mining, where precise identification of colors can be vital for safety and productivity, lighting with a high CRI is necessary. A higher CRI ensures that workers can differentiate between objects, materials, and warning signs, even in the complex lighting conditions of a mine. Lighting systems with a CRI rating of 80 or above are generally recommended for mining applications, allowing for greater clarity in color perception.

Compliance with Mining Safety Regulations

Mining lighting design must comply with stringent safety regulations to ensure the well-being of workers and prevent accidents. Regulatory bodies such as the Mine Safety and Health Administration (MSHA) and the Occupational Safety and Health Administration (OSHA) set specific standards for lighting in mines. These regulations cover everything from the type of lighting to be used, the lux levels to be maintained, and the placement of lights to avoid glare and shadow. In underground mining, particular emphasis is placed on the use of explosion-proof lighting in areas where gases or dust could ignite. Adherence to these regulations is a fundamental aspect of mining lighting design, ensuring a safe and secure work environment.

Key Factors in Mining Lighting Design

Durability and Resistance

Lighting systems must be able to withstand the harsh conditions typically found in mines, including exposure to dust, dirt, humidity, and potentially corrosive materials. Dust-proof and explosion-proof lighting fixtures are commonly used in underground mining operations to prevent damage and maintain performance. Lights designed for mining are also often resistant to water and extreme weather conditions, particularly in surface mining where rain, snow, and temperature fluctuations are common. A focus on durability ensures that lights continue to operate effectively with minimal downtime, reducing the need for constant maintenance or replacements.

Shock and Vibration Resistance

Lighting systems must be able to withstand these vibrations without failing. Shockproof lighting fixtures are designed to remain functional even when subjected to physical impact or continuous vibrations. This is particularly relevant in surface mining, where large machines such as excavators and trucks are constantly in motion. The installation of shock-resistant lighting ensures that the lights maintain their structural integrity and illumination capabilities, even in the face of constant movement.

Energy Efficiency

Energy efficiency is a growing consideration in mining lighting design. Mining operations consume significant amounts of energy, and lighting is a major contributor to overall energy consumption. The adoption of LED lighting systems offers substantial energy savings compared to traditional lighting technologies. LEDs are not only more energy-efficient but also longer-lasting, requiring less frequent replacements. Solar-powered lighting systems, particularly in surface mining, provide a sustainable alternative by harnessing natural energy sources. Energy-efficient lighting reduces operational costs and aligns with sustainability goals by lowering the mine’s carbon footprint.

Glare Reduction and Uniformity

The design of a mining lighting system must account for both glare reduction and uniform light distribution. Glare can cause temporary blindness or discomfort for workers, increasing the risk of accidents. Lighting fixtures in mining environments are often equipped with anti-glare features that diffuse the light and reduce its intensity in certain areas. Additionally, ensuring uniformity in light distribution is critical to preventing dark spots or over-lit areas, which can also lead to safety hazards. Properly designed lighting provides consistent illumination across all work areas, improving both safety and productivity.

Temperature and Humidity Tolerance

Mining environments are subject to extreme temperatures, both hot and cold, as well as high levels of humidity. Lighting systems used in mining must be able to tolerate these conditions without degrading or failing. In underground mines, humidity levels can be high, leading to the risk of corrosion and electrical malfunctions in lighting fixtures. Specially designed mining lights are constructed with materials that resist rust and corrosion, ensuring long-lasting performance. Similarly, lighting systems in surface mining need to withstand both freezing temperatures in winter and high heat in summer. Proper design ensures that lights continue to function optimally regardless of environmental conditions.

Safety and Security Features

Emergency Lighting Systems

Emergency lighting systems are designed to provide backup illumination during power failures. These systems are typically battery-powered and can operate for extended periods until power is restored. The inclusion of emergency lighting in mining design enhances safety by ensuring that visibility is maintained during critical situations.

Explosion-proof Lighting

Certain areas within mines, particularly underground, present the risk of explosions due to the presence of flammable gases or dust. In these environments, explosion-proof lighting systems are required to prevent sparks or overheating that could ignite hazardous materials. Explosion-proof lights are sealed and designed to contain any internal explosions, ensuring that they do not ignite the surrounding atmosphere. These systems are a key component of mining lighting design, particularly in high-risk areas where worker safety is paramount.

Anti-glare Features

In mining, anti-glare lighting fixtures are used to reduce the intensity of light that could otherwise cause eye strain or visual impairment. These fixtures are designed to diffuse light evenly and direct it away from the worker’s line of sight. Anti-glare lighting improves visibility and reduces fatigue, contributing to safer working conditions.

Installation and Maintenance Considerations

Ease of Installation

Lighting systems in mines need to be installed quickly and efficiently to minimize downtime and avoid disruptions to operations. Modular lighting systems offer the advantage of easy installation and replacement. These systems are designed to be mounted securely, even in challenging environments. The ability to install lighting quickly ensures that new areas of the mine can be illuminated without causing delays in production.

Maintenance and Longevity

Mining lighting systems are exposed to harsh conditions that can lead to wear and tear over time. Regular maintenance is required to ensure that lights continue to function effectively. Long-lasting lighting solutions reduce the need for frequent maintenance and replacements, lowering operational costs and minimizing downtime. Lighting systems designed for longevity typically feature robust construction materials and protective coatings that resist corrosion and impact. Regular inspections of lighting systems are necessary to identify any issues before they result in equipment failure.

Environmental Impact and Sustainability

Energy-efficient Lighting Solutions

Mining operations are increasingly looking for ways to reduce their environmental impact, and lighting is one area where improvements can be made. Energy-efficient lighting systems, such as LEDs, use less power than traditional lighting options, leading to lower energy consumption and reduced greenhouse gas emissions. Solar-powered lighting solutions are also being integrated into mining operations, particularly in surface mining where sunlight is abundant. These systems reduce the reliance on fossil fuels and align with broader sustainability goals.

Minimizing Light Pollution

Mining operations, particularly surface mines, can contribute to light pollution if not properly managed. Lighting systems designed to focus light only on the areas that need illumination help reduce unnecessary light spill into the surrounding environment. Minimizing light pollution not only improves the efficiency of lighting but also reduces its impact on nearby ecosystems and communities.

Recycling and Disposal of Lighting Equipment

As lighting systems in mines reach the end of their lifecycle, proper disposal and recycling are necessary to prevent environmental contamination. Many lighting fixtures, especially those that are energy-efficient, contain materials that can be recycled or repurposed. Responsible disposal of lighting equipment is a key aspect of sustainable mining operations, reducing the overall environmental footprint of the mine.

Use of Renewable Energy Sources

The integration of renewable energy sources into mining lighting systems is an innovative approach to improving sustainability. Solar-powered lighting is particularly beneficial in surface mining operations, where ample sunlight can be harnessed to power lights without reliance on conventional energy sources. In addition to solar power, wind turbines and other renewable energy systems are being explored to reduce the environmental impact of lighting in mines. These renewable energy solutions not only lower energy costs but also contribute to the overall sustainability of mining operations by reducing their carbon footprint. The adoption of renewable lighting solutions reflects a growing commitment to environmentally responsible mining practices.

Conclusion

Designing lighting systems for mining environments requires careful consideration of the unique challenges posed by both surface and underground operations. Factors such as the type of mining, the conditions of the environment, and the specific tasks being performed must all be taken into account. By selecting appropriate lighting types, ensuring compliance with safety standards, and focusing on durability, energy efficiency, and glare reduction, mining operations can significantly enhance worker safety and productivity.

As the mining industry continues to evolve, incorporating advanced technologies and sustainable practices will become increasingly critical in lighting design. The future of mining lighting lies in energy-efficient solutions such as LED and solar-powered systems, as well as the development of lighting systems that can withstand the harshest conditions while reducing environmental impact. Whether in the depths of an underground mine or across the expanse of a surface mining site, well-designed lighting plays a central role in creating safer, more efficient, and more sustainable mining operations.
